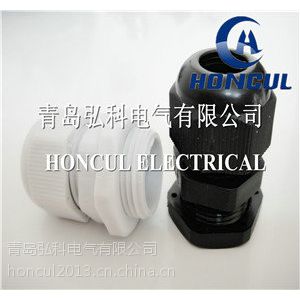

| 加工定制：是 | 型号：NG-M12 | 材质：塑料 |
| 品牌：HONCUL | 规格：齐全 | 公称直径：3-30mm |
| 连接型式：螺纹连接 | 适用范围：紧固电线电缆 |
| Part No. | 螺牙标准 | 卡口范围 | 螺纹长度 | 螺纹内径 | 扳手径 | Packing |
| NGM12-03 | M12*1.5 | 3-6 | 8.5 | 12.0 | 18/16 | 100 |
| NGM14-04 | M14*1.5 | 4-8 | 9.5 | 14.0 | 19/17 | 100 |
| NGM16-04 | M16*1.5 | 4-9 | 9.5 | 16.0 | 22/19 | 100 |
| NGM18-06 | M18*1.5 | 6-10 | 9.5 | 18.0 | 24/22 | 100 |
| NGM20-07 | M20*1.5 | 7-11 | 11.0 | 20.0 | 26/24 | 100 |
| NGM22-10 | M22*1.5 | 10-15 | 9.0 | 22.0 | 29/26 | 100 |
| NGM24-10 | M24*1.5 | 10-15 | 10.0 | 24.0 | 30/27 | 100 |
| NGM25-11 | M25*1.5 | 11-16 | 10.0 | 25.0 | 32/28 | 100 |
| NG-13M27 | M27*1.5 | 13-18 | 11.0 | 27.0 | 34/32 | 50 |
| NG-16M30 | M30*1.5 | 16-20 | 11.0 | 30.0 | 36/35 | 20 |
| NGM32-17 | M32*1.5 | 17-22 | 12.0 | 32.0 | 41/37 | 20 |
| NGM36-20 | M36*1.5 | 20-25 | 11.0 | 36.0 | 45/41 | 10 |
| NGM40-24 | M40*1.5 | 24-29 | 20.0 | 40.0 | 51/46 | 10 |
| NGM50-31 | M50*1.5 | 31-36 | 17.0 | 50.0 | 63/58 | 10 |
| NGM63-35 | M63*1.5 | 35-40 | 17.0 | 63.0 | 74/67 | 10 |
