| 加工定制：是 | 型号：PCR006 | 规格：6-65 |
| 材质：橡胶 | 品牌：HONCUL | 类型：R型 |
| 表面处理：带胶 | 公称通径：6-65mm | 紧固直径：6-65mm |
| 适用范围：固定电线电缆，软管，钢管 |

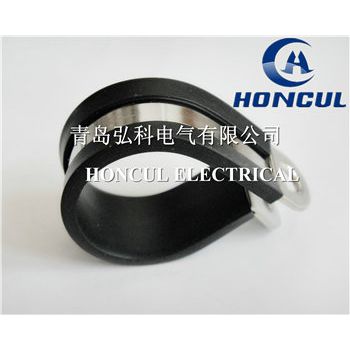

PCR | R型包胶固定夹 R Type Coated Rubber Metal Clamp | |||||
|
| |||||
●材质：铁、不锈钢，橡胶。 ●Materal:Iron,Stainless steel，Rubber. ●镀层：镀锌、镀镍 ●Coating:Sherardize, nickelplate. ●特性：橡胶具防滑、吸震，***、耐候性优良。 ●Property:Rubber with anti-skid,shock absorption,aging ●说明：库存齐全，接受订制。 resistance, excellent weatherability. ●Note: Sufficient inventory, acceptable. 青岛弘科电气有限公司 李先生 手机：136 8765 8273 电话：0532-8568 7050 QQ：24586 19691 E-mail:sales@honcul.com 网址： | ||||||
Part No. | Specification | 宽度 | 厚度 | 螺孔 | Packing | |
| mm | Inch |
|
|
|
|
PCR004 | 4 | 1/8 | 17.0 | 0.8 | 6.6 | 100 |
PCR006 | 6 | 1/4 | 17.0 | 0.8 | 6.6 | 100 |
PCR008 | 8 | 5/16 | 17.0 | 0.8 | 6.6 | 100 |
PCR010 | 10 | 3/8 | 17.0 | 0.8 | 6.6 | 100 |
PCR012 | 12 | 1/2 | 17.0 | 0.8 | 6.6 | 100 |
PCR014 | 14 | 9/16 | 17.0 | 0.8 | 6.6 | 100 |
PCR016 | 16 | 5/8 | 17.0 | 0.8 | 6.6 | 100 |
PCR018 | 18 | 11/16 | 17.0 | 0.8 | 6.6 | 100 |
PCR020 | 20 | 3/4 | 17.0 | 0.8 | 6.6 | 100 |
